DWC Pipes
Product Brief
- Material: HD (PE) & (PP)
- Specifications: Stiffness SN4 and SN8
- Size: DN150, DN200, DN250, and DN300
- BIS Standard : IS-16098 : 2013 (Part-2) (Amended Up to Date)
- ISO Certified : ISO 9001:2015
- Color: Outer: Black Inner : Orange and Blue
- Length : 6mt, Including Socket
- Supplied By : Pipe along with gasket.
Advantages
Highly Durable
DWC pipes feature a tough double-layered structure that withstands heavy loads, soil pressure, and harsh environments, ensuring long-lasting underground performance.
Corrosion Resistance
Built from high-quality polymers, DWC pipes remain unaffected by soil chemicals, moisture, and corrosive substances, delivering reliable operation for decades.
Flexibility
Their superior flexibility allows safe installation in uneven terrains, enabling smooth alignment, reduced joint stress, and better adaptability to ground movement.
Non Toxic
Manufactured using safe, non-toxic materials, DWC pipes ensure clean, contamination-free flow, making them suitable for drainage, sewerage, and utility ducts.
Light Weight
Lightweight construction ensures easy handling, faster transportation, and simpler installation, reducing labor effort and overall project time significantly.
Highly Durable
DWC pipes are recyclable, energy-efficient to manufacture, and deliver long service life, supporting sustainable and environmentally responsible infrastructure development.
DWC Double Wall Corrugated Pipes Genix Polymers Pvt Ltd
Engineered for Superior Strength & Long-Term Reliability
Genix Polymers Pvt Ltd manufactures high-performance DWC Pipes (Double Wall Corrugated Pipes) designed with Stiffness Class SN-4 and SN-8, ensuring exceptional load-bearing strength for underground utilities. As one of the leading DWC pipe manufacturers in India, we engineer our pipes to perform flawlessly under heavy soil loads, dynamic traffic conditions, and demanding municipal, industrial, and smart-city environments.
Our DWC pipe specifications guarantee resistance to soil pressure, shock, impact, and corrosion, delivering a maintenance-free service life for decades. Manufactured with uniform dimensional accuracy, every pipe meets strict quality parameters for consistent performance.
We offer DWC pipes in four standard diameters based on the approved DWC pipe size chart:
- 150 mm
- 200 mm
- 250 mm
- 300 mm
A detailed DWC pipe price list PDF, with technical data and project-specific costing, is available upon request.
Why Choose Genix DWC Pipes?
✔ High Structural Strength

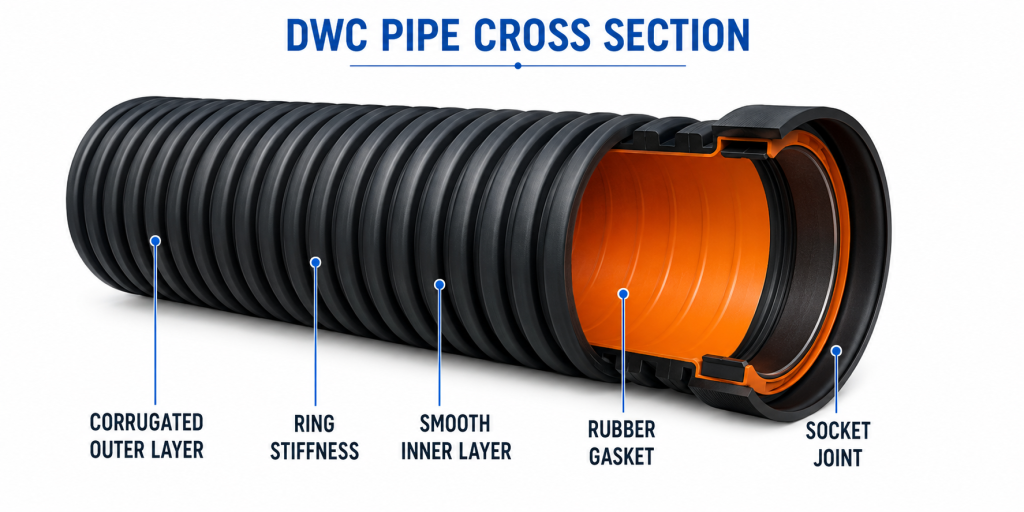

Corrugated double-layer design provides exceptional load-bearing capacity for underground installations.
✔ Smooth Inner Bore
Ensures improved hydraulic performance, reduced friction losses, and blockage-free flow.
✔ Lightweight & Easy Installation
Significantly lighter than RCC and metal pipes, reducing installation time and project cost.
✔ Corrosion, Chemical & Abrasion Resistant
Engineered to withstand aggressive soil conditions and harsh wastewater environments.
✔ Leak-Proof Jointing System
Prevents leakage, contamination, and long-term maintenance issues.
✔ Eco-Friendly & Sustainable
Manufactured using recyclable HDPE, supporting modern green-infrastructure initiatives.
Quality Assured – Precision Tested HDPE Pipes
At Genix Polymers, every pipe undergoes a two-phase quality validation process:
Before Production
- Raw material evaluation
- Melt Flow Index (MFI) check
- Density & purity testing
- Grade confirmation (PE63/PE80/PE100)
After Production
- Stiffness Testing
- Joint Leak Free Testing
- Impact test (Hot & Cold)
- Burst pressure evaluation
- Wall thickness and dimensional accuracy
- Tensile strength tests
- Surface & visual inspection
Applications
Sewerage Systems
Agricultural Drainage Systems
Culverts
Industrial Drainage Systems
Stormwater Drainage Systems
Manufactured to Exceed Industry Standards

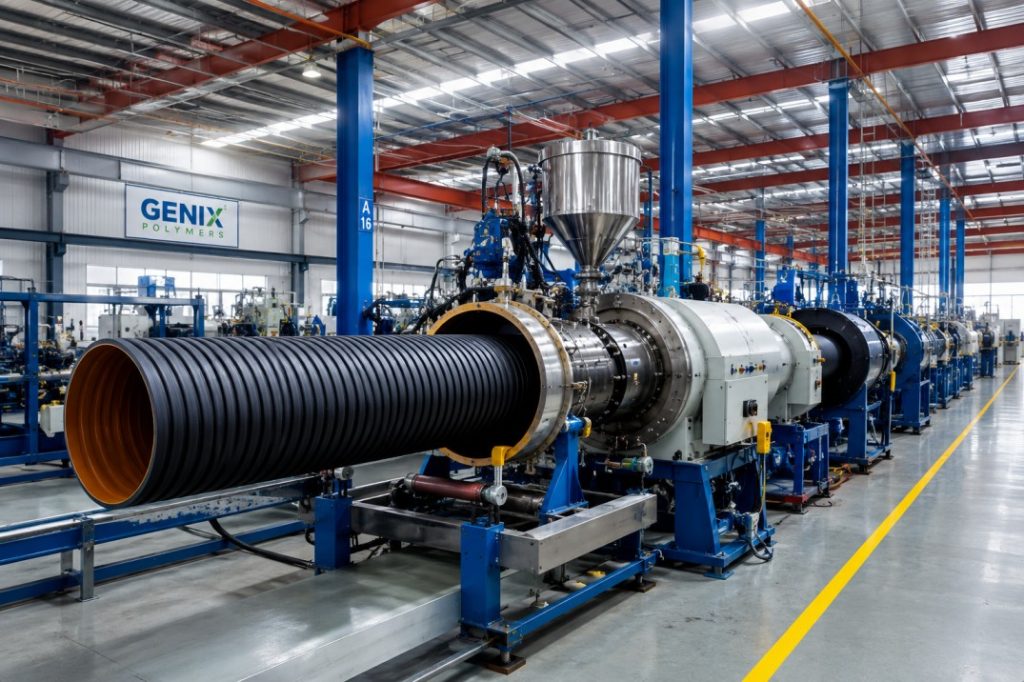

At Genix Polymers, every DWC HDPE pipe undergoes advanced testing for stiffness, durability, dimensional precision, structural integrity, and long-term performance. Our automated manufacturing and quality-driven engineering ensure that each pipe meets and surpasses current industry standards and regulatory benchmarks.
As a trusted DWC pipe manufacturer in India, Genix Polymers delivers unmatched precision, reliability, and value for public and private infrastructure projects nationwide.
